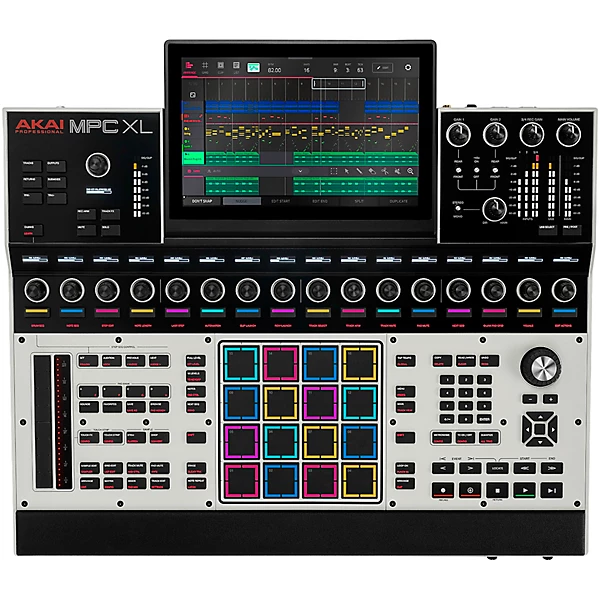

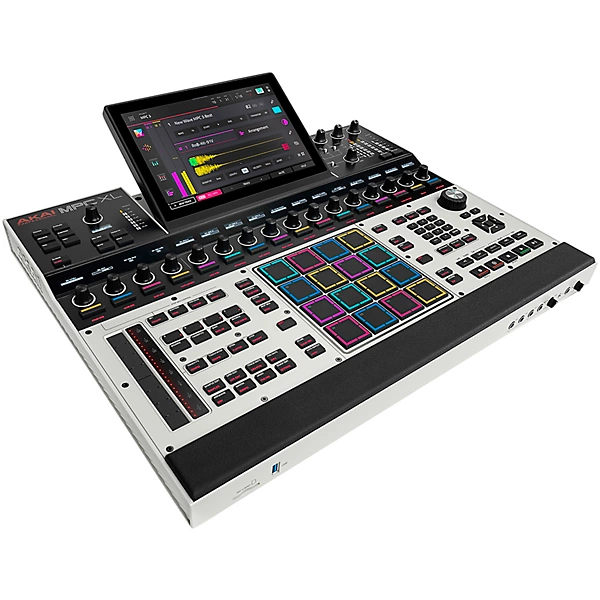

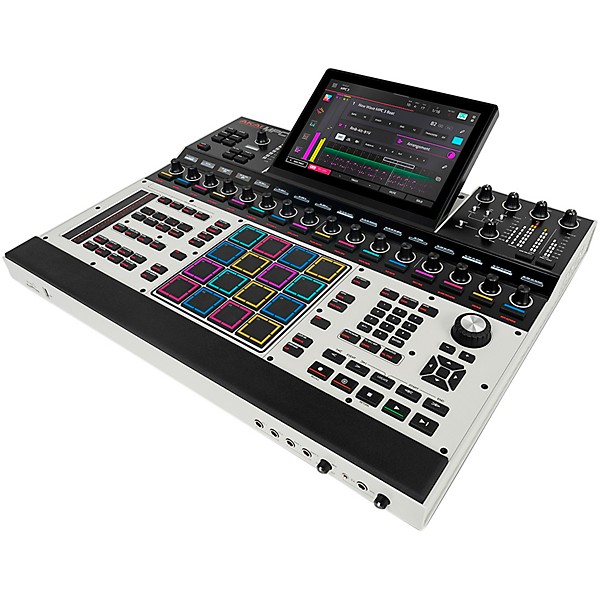

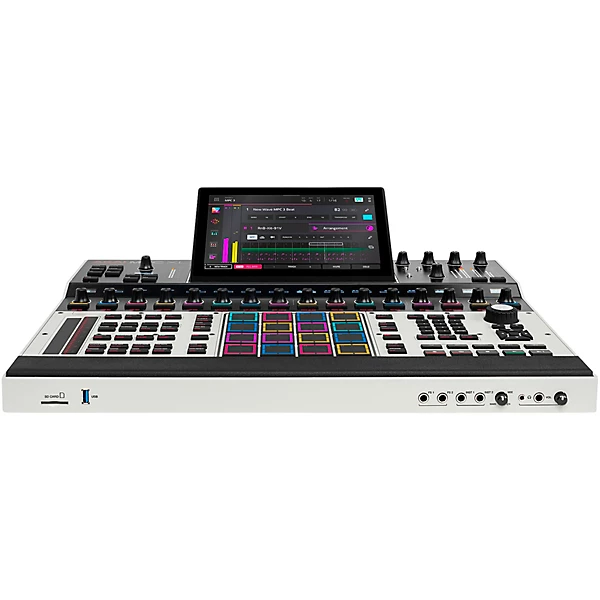

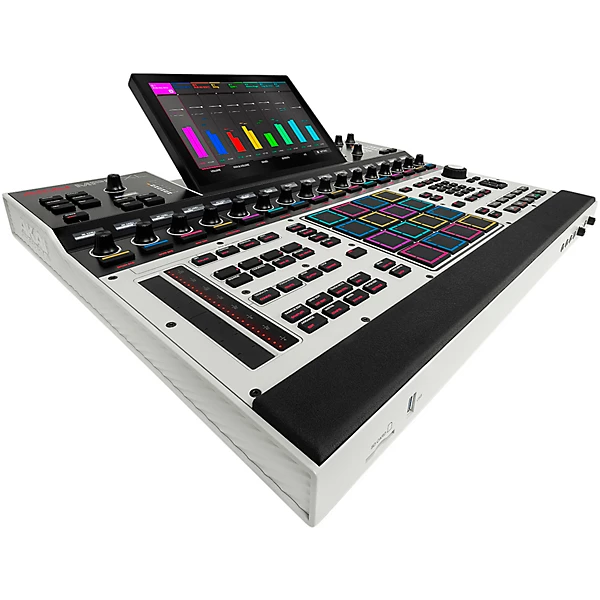

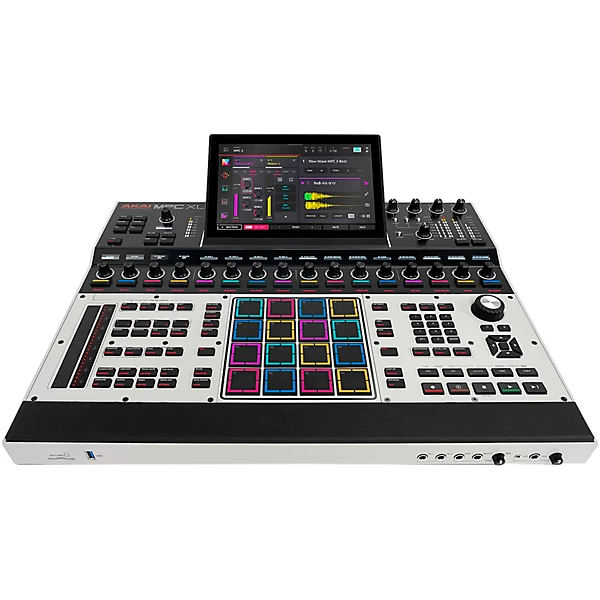

New Akai Professional MPC XL Standalone Production Workstation

• Product type: Standalone production workstation
• Model: MPC XL

Digital Audio System

• AD conversion: 24-bit at 44.1kHz, 48kHz, 88.2kHz and 96kHz
• DA conversion: 24-bit at 44.1kHz, 48kHz, 88.2kHz and 96kHz
• DSP processing: 32-bit floating point

Mic Inputs 1–2

• Inputs: 2 balanced XLR and 1/4″ TRS combo inputs
• Frequency response: 20Hz–20kHz +.19dB and –.16dB
• Dynamic range: 109.8dB A-weighted
• Signal to noise ratio: 109.3dB A-weighted at 1kHz +4dBu
• Total harmonic distortion: 0.001 percent at 1kHz +4dBu
• Equivalent input noise: –134dBu A-weighted at 40-ohm source and –129dBu unweighted at 150-ohm source
• Maximum input level: +12.7dBu
• Sensitivity: –45.5dBu
• Gain range: 58.2dB

Line Inputs 1–2

• Inputs: 2 balanced XLR and 1/4″ TRS combo inputs
• Frequency response: 20Hz–20kHz +.09dB and –.05dB
• Dynamic range: 109.8dB A-weighted
• Signal to noise ratio: 109.4dB A-weighted at 1kHz +4dBu
• Total harmonic distortion: .001 percent at 1kHz +4dBu
• Maximum input level: +20.1dBu
• Sensitivity: –9.6dBu
• Gain range: 29.7dB

Line Inputs 3–4

• Inputs: 2 balanced 1/4″ TRS inputs
• Frequency response: 20Hz–20kHz, +.09dB and –.05dB
• Dynamic range: 110.8dB A-weighted
• Signal to noise ratio: 109.7dB A-weighted at 1kHz +4dBu
• Total harmonic distortion: .001 percent at 1kHz +4dBu
• Maximum input level: +20.3dBu
• Sensitivity: –10.3dBu
• Gain range: 30.6dB

Instrument Inputs 1–2

• Inputs: 2 unbalanced 1/4″ TS inputs
• Frequency response: 20Hz–20kHz, +.15dB and –.05dB
• Dynamic range: 111dB A-weighted
• Signal to noise ratio: 109.6dB A-weighted at 1kHz
• Total harmonic distortion: .0013 percent at 1kHz
• Maximum input level: +10.1dBu
• Sensitivity: –19.6dBu
• Gain range: 29.7dB

Phono Inputs

• Inputs: 2 unbalanced RCA inputs
• Dynamic range: 103.3dB A-weighted
• Signal to noise ratio: 97dB A-weighted
• Total harmonic distortion: .036 percent at 1kHz
• Maximum input level: 65 mVrms at 1kHz
• Sensitivity: 2 mVrms at 1kHz

Main Outputs 1–2

• Outputs: 2 impedance balanced 1/4″ TRS outputs
• Frequency response: 20Hz–20kHz +.06dB and –.31dB
• Dynamic range: 115.6dB A-weighted
• Total harmonic distortion: .003 percent at 1kHz
• Maximum output level: +20.3dBu
• Output impedance: 100 ohm

Line Outputs 3–8

• Outputs: 6 impedance-balanced 1/4″ TRS outputs
• Frequency response: 20Hz–20kHz, +.06dB and –.24dB
• Dynamic range: 116.3dB A-weighted
• Total harmonic distortion: .005 percent at 1kHz
• Maximum output level: +20.4dBu
• Output impedance: 100 ohm

Headphone Outputs

• Outputs: 1 x 1/4″ stereo and 1 x 1/8″ stereo headphone outputs
• Dynamic range: 100.6dB A-weighted
• Total harmonic distortion: .025 percent at 1kHz into 32 ohm
• Frequency response: 20Hz–20kHz, +.06dB and –.31dB
• Maximum power: 260mW per channel into 32 ohm
• Maximum output level: +20.4dBu
• Output impedance: 32 ohm

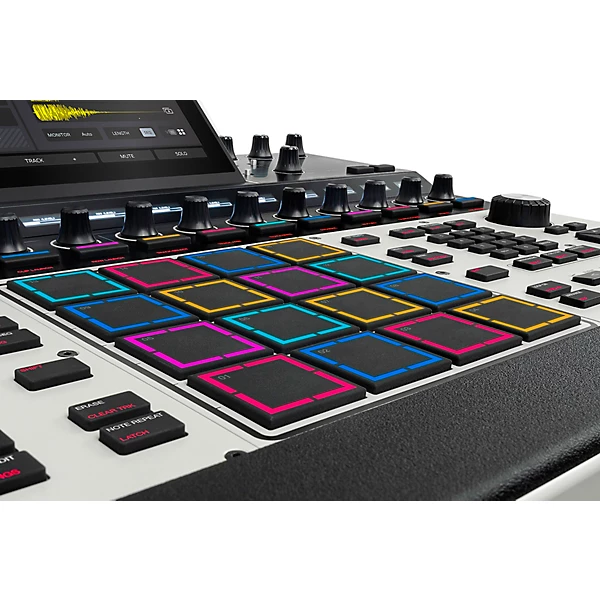

Pads

• Pads: 16 velocity and pressure sensitive pads with 3D sensing
• Pad banks: 8 selectable banks

Controls

• Q link knobs: 17 touch-sensitive endless rotary knobs
• Encoders: 1 push encoder
• Additional knobs: 7 rotary knobs
• Buttons: 105 dedicated buttons with multi-color LED indicators

Displays

• Main display: 10.1″ multi-touch color display, 1280 x 800 resolution
• Secondary displays: 17 monochrome OLED displays, 128 x 32

CPU and Storage

• Processor: 8-core processor
• Memory: 16GB RAM
• Storage: 256GB internal NVMe SSD with SATA expansion bay

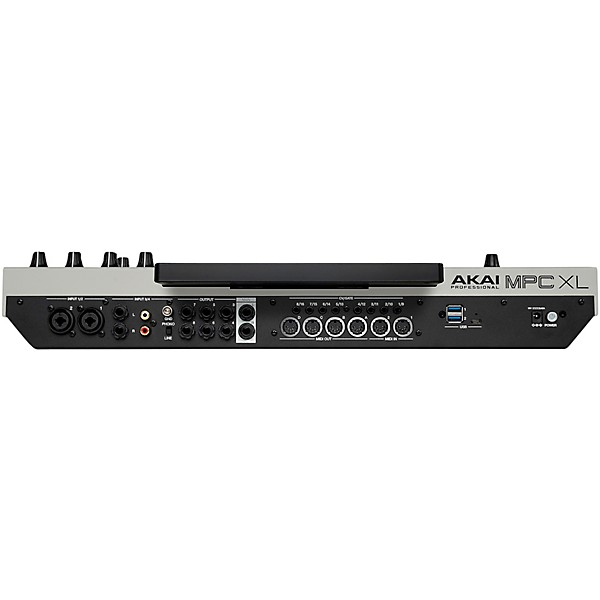

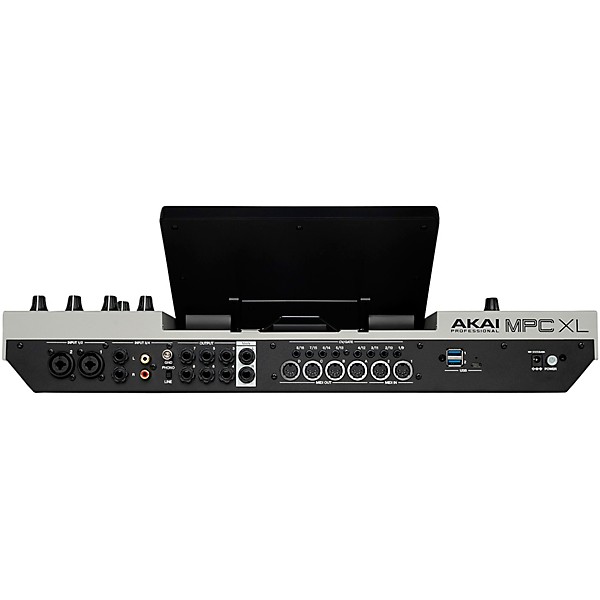

Connectivity

• Combo inputs: (2) combo XLR and 1/4″ TRS inputs
• Line inputs: (2) 1/4″ TRS inputs
• Phono inputs: (2) RCA inputs
• Instrument inputs: (2) 1/4″ TS inputs
• Footswitch inputs: (2) 1/4″ TS inputs
• Analog outputs: (8) 1/4″ TRS outputs
• Headphone outputs: (1) 1/4″ and (1) 1/8″
• MIDI outputs: (4) 5-pin MIDI outputs
• MIDI inputs: (2) 5-pin MIDI inputs
• CV gate outputs: (8) stereo 1/8″ outputs
• USB: (1) USB C port and 3 USB A ports
• SD card: SD card slot
• Wireless: Wi-Fi and Bluetooth

Power

• Power requirements: 19V 3.42A center-positive adapter included

Dimensions and Weight

• Unit dimensions: 21.4″ x 19.2″ x 3.7″
• Unit weight: 15.87 lb.
